VLABench#

← 教程资料库 · 仿真与基准

本节介绍 LeRobot 的通用功能。请按目标机器人、数据集和运行环境配置示例；用于 AlohaMini 2 / 2 Pro 前，需要确认硬件与接口兼容性。

VLABench is a large-scale benchmark for language-conditioned robotic manipulation with long-horizon reasoning. The upstream suite covers 100 task categories across 2,000+ objects and evaluates six dimensions of robot intelligence: mesh & texture understanding, spatial reasoning, world-knowledge transfer, semantic instruction comprehension, physical-law understanding, and long-horizon planning. Built on MuJoCo / dm_control with a Franka Panda 7-DOF arm. LeRobot exposes 43 of these tasks through --env.task (21 primitives + 22 composites, see Available tasks below).

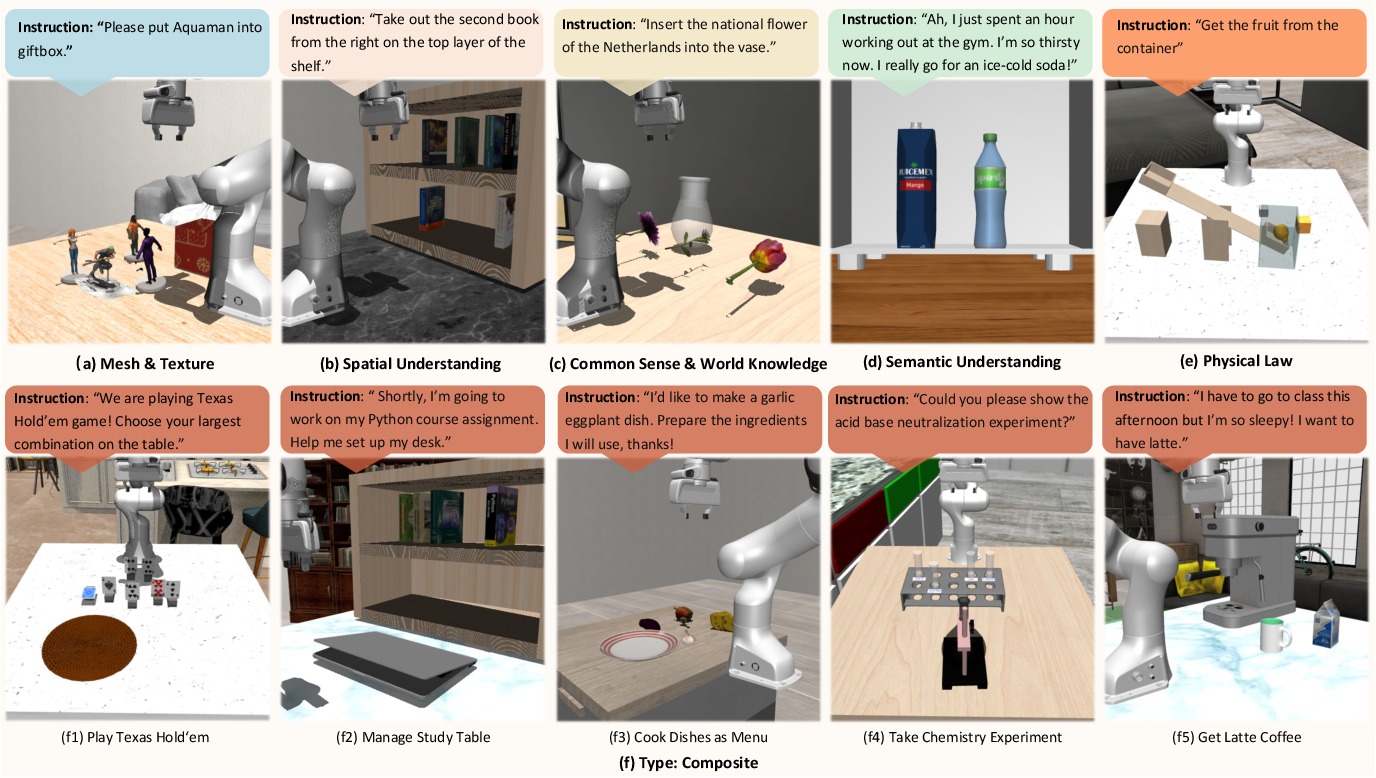

VLABench benchmark overview

Available tasks#

VLABench ships two task suites covering 43 task categories in LeRobot's --env.task surface:

Suite

CLI name

Tasks

Description

Primitive

primitive

21

Single / few-skill combinations (select, insert, physics QA)

Composite

composite

22

Multi-step reasoning and long-horizon planning (cook, rearrange)

Primitive tasks: select_fruit, select_toy, select_chemistry_tube, add_condiment, select_book, select_painting, select_drink, insert_flower, select_billiards, select_ingredient, select_mahjong, select_poker, and physical-reasoning tasks (density_qa, friction_qa, magnetism_qa, reflection_qa, simple_cuestick_usage, simple_seesaw_usage, sound_speed_qa, thermal_expansion_qa, weight_qa).

Composite tasks: cluster_billiards, cluster_book, cluster_drink, cluster_toy, cook_dishes, cool_drink, find_unseen_object, get_coffee, hammer_nail, heat_food, make_juice, play_mahjong, play_math_game, play_poker, play_snooker, rearrange_book, rearrange_chemistry_tube, set_dining_table, set_study_table, store_food, take_chemistry_experiment, use_seesaw_complex.

--env.task accepts three forms:

  • a single task name (select_fruit)

  • a comma-separated list (select_fruit,heat_food)

  • a suite shortcut (primitive, composite, or primitive,composite)

Installation#

VLABench is not on PyPI — its only distribution is the OpenMOSS/VLABench GitHub repo — so LeRobot does not expose a vlabench extra. Install it manually as an editable clone, alongside the MuJoCo / dm_control pins VLABench needs, then fetch the mesh assets:

# After following the standard LeRobot installation instructions.

git clone https://github.com/OpenMOSS/VLABench.git ~/VLABench
git clone https://github.com/motion-planning/rrt-algorithms.git ~/rrt-algorithms
pip install -e ~/VLABench -e ~/rrt-algorithms
pip install "mujoco==3.2.2" "dm-control==1.0.22" \
            open3d colorlog scikit-learn openai gdown

python ~/VLABench/scripts/download_assets.py

提示

VLABench requires Linux (sys_platform == 'linux') and Python 3.10+. Set the MuJoCo rendering backend before running:

export MUJOCO_GL=egl  # for headless servers (HPC, cloud)

Evaluation#

All eval snippets below mirror the command CI runs (see .github/workflows/benchmark_tests.yml). The --rename_map argument maps VLABench's image / second_image / wrist_image camera keys onto the three-camera (camera1 / camera2 / camera3) input layout the released smolvla_vlabench policy was trained on.

Multi-task evaluation#

Pass a comma-separated list of tasks:

lerobot-eval \
  --policy.path=lerobot/smolvla_vlabench \
  --env.type=vlabench \
  --env.task=select_fruit,select_toy,add_condiment,heat_food \
  --eval.batch_size=1 \
  --eval.n_episodes=10 \
  --eval.use_async_envs=false \
  --policy.device=cuda \
  '--rename_map={"observation.images.image": "observation.images.camera1", "observation.images.second_image": "observation.images.camera2", "observation.images.wrist_image": "observation.images.camera3"}'

Suite-wide evaluation#

Run an entire suite (all 21 primitives or all 22 composites):

lerobot-eval \
  --policy.path=lerobot/smolvla_vlabench \
  --env.type=vlabench \
  --env.task=primitive \
  --eval.batch_size=1 \
  --eval.n_episodes=10 \
  --eval.use_async_envs=false \
  --policy.device=cuda \
  --env.max_parallel_tasks=1 \
  '--rename_map={"observation.images.image": "observation.images.camera1", "observation.images.second_image": "observation.images.camera2", "observation.images.wrist_image": "observation.images.camera3"}'

Or both suites:

lerobot-eval \
  --policy.path=lerobot/smolvla_vlabench \
  --env.type=vlabench \
  --env.task=primitive,composite \
  --eval.batch_size=1 \
  --eval.n_episodes=10 \
  --eval.use_async_envs=false \
  --policy.device=cuda \
  --env.max_parallel_tasks=1 \
  '--rename_map={"observation.images.image": "observation.images.camera1", "observation.images.second_image": "observation.images.camera2", "observation.images.wrist_image": "observation.images.camera3"}'

Policy inputs and outputs#

Observations:

  • observation.state — 7-dim end-effector state (position xyz + Euler xyz + gripper)

  • observation.images.image — front camera, 480×480 HWC uint8

  • observation.images.second_image — second camera, 480×480 HWC uint8

  • observation.images.wrist_image — wrist camera, 480×480 HWC uint8

Actions:

  • Continuous control in Box(-1, 1, shape=(7,)) — 3D position + 3D Euler orientation + 1D gripper.

Training#

Datasets#

Pre-collected VLABench datasets in LeRobot format on the Hub:

Example training command#

Fine-tune a SmolVLA base on the primitive suite:

lerobot-train \
  --policy.type=smolvla \
  --policy.repo_id=${HF_USER}/smolvla_vlabench_primitive \
  --policy.load_vlm_weights=true \
  --policy.push_to_hub=true \
  --dataset.repo_id=VLABench/vlabench_primitive_ft_lerobot_video \
  --env.type=vlabench \
  --env.task=select_fruit \
  --output_dir=./outputs/smolvla_vlabench_primitive \
  --steps=100000 \
  --batch_size=4 \
  --env_eval_freq=5000 \
  --eval.batch_size=1 \
  --eval.n_episodes=1 \
  --save_freq=10000

Reproducing published results#

The released checkpoint lerobot/smolvla_vlabench was trained on the primitive-suite dataset above and is evaluated with the Single-task / Suite-wide commands. CI runs a 10-primitive-task smoke eval (one episode each) on every PR touching the benchmark.
